Delivers accurate energy metering, load optimization, and circuit protection, making it ideal for mining data centers and critical IT infrastructure.
Sustainable, Scalable, Maintainable. Innovative technology built into the PDU body for smarter power management. Our PDU is a part of BiXBiT ecosystem (software and hardware)
Provides real-time power monitoring to support energy optimization and circuit protection.
User-defined thresholds trigger local and remote alarms to prevent circuit overloads. Including integration with BiXBiT AMS
Real-time usage data enables load balancing, IT scaling decisions, and lowers TCO (Total Cost of Ownership).
Supports remote configuration via Ethernet or RS485, adapting to various system setups.
Ideal for mining farms, mining and data centers
6 pin
12 pin
16 pin
20 pin

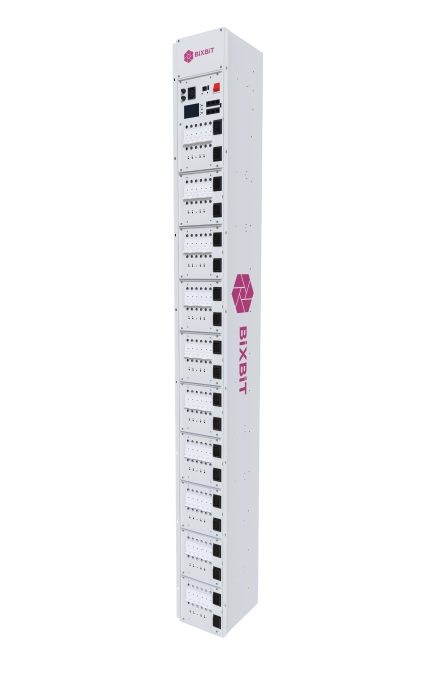

All specifications are provided for the largest PDU with 20 outlets; specifications for smaller models will differ. Details should be clarified.
Working mode
Three-phase and single phase
Input voltage
380-480 VAC, 3 phase
Input current
max 450 А (20 outputs version)
Frequency
50/60 Hz
Output voltage
380-480 VAC - 3 phase,
220-277 VAC - single phase
Number of controlled outputs
Standard versions: 6, 12, 16, 20
Other options are possible by agreement with the customer
Remote Control and Monitoring
Integrated with BiXBiT AMS system, which allows to control of all devices in the environment, including miners.
Supports SNMP protocol, HTTPS, Mudbus
Dimensions (L x W x D)
1850 (L) mm x 175 (W) mm x 300 (D) mm
The size can be adjusted according to customer requirements
Certificates
